Demagnetizer
Star trace Pvt.Ltd is a twenty five year old company with rich experience as manufacturer, supplier and exporter of magnetic equipment.A wide assortment of machines ranging from lab scale operation to large industrial usage, all are manufactured in our manufacturing unit located in Chennai,Tamilnadu, India. The sale of our products has penetrated to many countries and we have great patronage from our clients.Looking forward for sales in many new countries we are pushing boundaries and have been achieving it.
Demagnetizers are equipment used to remove magnetic activity of a substance which may be tools, spare parts etc. They could have aquired the property in the process of being manufactured or on the exposure to magnetic substances. To bring them to their natural self, demagnetization is mandatory.
Tell us your buy requirements or Call +91 9940083567 / 9380521567
Demagnetizers are available in two types Tunnel Type and Plate type. Depending on the kind of object to be demagnetized the model is chosen between plate and tunnel.
The tunnel type Demagnetizers are used in manufacturing units that have constant production and the size of the product is compatible. Spare parts or tools which have to be Demagnetizer are set on conveyor belts and allowed to pass through the tunnel Demagnetizer at a fixed speed. On moving out of the tunnel complete demagnetization is achieved.
Features of tunnel type :
- Super efficiency in demagnetizing and magnetizing suitable for any kinds of metals.
- Merely using tools to pass through or move into a tunnel will cause a good effect.
- Suitable for planned automatic process be adapted for delivery belts to proceed in order to increase productivity.
- Suitable for large production of component spare parts, attachments, tools, etc.
- Suitable for hand manual tools, etc. for filling magnetism.
- Attached a fan inside for dissipating heat.
- Special specifications will be made subject to customer’s requirements.
| POWER SOURCE | CAPACITY | DITY CYCLE | DIMENSION | GATE | NET WEIGHT | |||
| L | W | H | A | B | ||||
| AC 220/330 V (Single Phase) | 3250 VA | 100% | 370 | 370 | 200 | 100 | 150 | 50 Kg |
| 4540 VA | 470 | 370 | 200 | 150 | 250 | 55 Kg | ||
| AC 220/330 V(3 Phase) | 4500 VA | 720 | 520 | 200 | 270 | 470 | 140 Kg | |

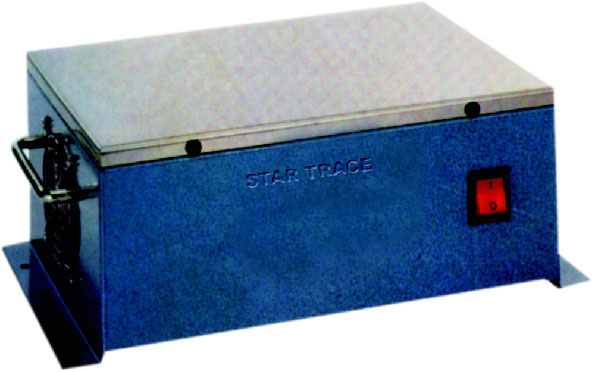

Plate Type Demagnetizer is suitable for general component spare parts, attachments, tools,roller bearings etc. for fixed way demagnetization. The top of the plate magent resembles a plate and the part to be demagnetized is slid smoothly over the plate type Demagnetizer and by doing so the magnetic property is completely removed.
After operating by 20 mins, it must be turned off for 20 mins. Automatic Temperature Protection : When temperature reaches to the setting point, the power will be cut off automatically, and then it will restart to work.
MODEL 59
MODEL - 59 Suitable for long time use; be able to use continuously for 24 hours With design of double coil inside to avoid heat release.
| MODEL | POWER SOURCE | CAPACITY | DITY CYCLE | DIMENSION | NET WEIGHT | ||
| L | W | H | |||||
| STDM | AC 110/220 V | 220 VA | 50% | 127 | 180 | 90 | 4.0 Kg |
| ST-59 | AC 230 V | 330 VA | 100% | 720 | 520 | 200 | 8.5 Kg |
- Residual magnetism is very less or almost nil.
- Demagnetizing will last long.
- Almost nil maintenance
- Easy installation
- Long life
- Customization according to client requirement is possible.
- Reliable and durable.
MODEL 200
FEATURES OF MODEL 200
- MODEL 200 Suitable for general component spare parts, attachments, tools, etc, for fixed way demagnetization.
- Suitable for longtime use : Be able to use continuously for 24 hours.
- With the design of double coils inside to avoid heat release.
MODEL 280
FEATURES OF MODEL 280
- MODEL 280 Suitable for large production of component spare parts, attachments, tools, etc. for fixed way demagnetization.
- Suitable for long time use ; be able to use continuously for 24 hours.
- Be adapted for delivery belts to proceed automatic demagnetization.
- Use for wide range : very effective.
- Attached a fan inside for dissipating heat.
- Special specifications will be made subject to customer's requirements.
The plate Demagnetizer and tunnel Demagnetizer are essential equipment to remove magnetic property. Depending on the size and shape of the material to be Demagnetized a decision of plate or tunnel can be made.Star Trace is flexible in its sale and offers tailor made solutions to cater to customer demands. Globally we serve numerous solutions for benefication of minerals. Drop in an inquiry to know more about our products and services.
